12V 30mm Round Single 3 x LED's in Blue
3m Cable included
304 Marine Grade Stainless Steel trim
Moulded Plastic Body
Diam: 30mm. Cut-out: 20mm. Depth: 25mm
Ideal for garden, decks, commercial & interior effect
Super bright LED's
Low energy (6 watt)
Suitable for walk over applications
Clips for self-fixing in decking & ceilings
R3 Single deck lights must be connected to Junction Box (sold separately R3JB)
Deck Light must have good drainage and not sit in water
IP67
To suit 30mm Deck Lights only
3m Cable included
Ideal for indoor/outdoor garden, deck, commercial & interior effect
Kit includes: 5 x 30mm Round Deck Light in Blue
1 x Junction Box (IP44)
1 x 12V Power Supply (IP44) with plug & lead
5m Cable per Deck Light
1 x Connector (IP44)
Moulded Plastic Body, 304 Marine Grade Stainless Steel trim with clips for mounting
Diam: 30mm. Cut-out: 20mm. Depth: 25mm
Super bright LED's. Low energy (6W)
Deck Lights must be connected by supplied Junction Box (max 10 lights per JB)
DC output from Junction Box to Deck Light is POLARITY SENSITIVE
Deck Lights must have good drainage and not sit in water
IP67

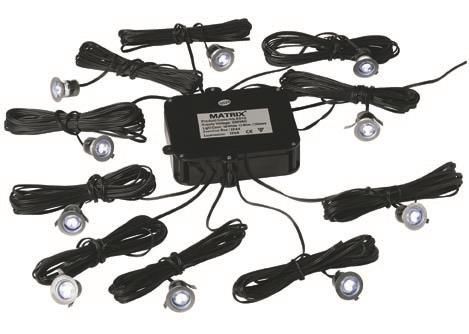

R31007 Blue 12V LED's Round 30mm Deck Light KitSet of 10
Ideal for indoor/outdoor garden, deck, commercial & interior effect
Kit includes: 10 x 30mm Deck Lights in Blue
1 x Junction Box (IP44)
1 x 12V Power Supply (IP44) with plug and lead
5m Cable per Deck Light
1 x Connector (IP44)
Moulded Plastic Body, 304 Marine Grade Stainless Steel trim with clips for mounting
Diam: 30mm. Cut-out: 20mm. Depth: 25mm
Super bright LED's. Low energy (6W)
Deck Lights must be connected by supplied Junction Box (max 10 lights per JB)
DC output from Junction Box to Deck Light is POLARITY SENSITIVE
Deck Lights must have good drainage and not sit in water
IP67

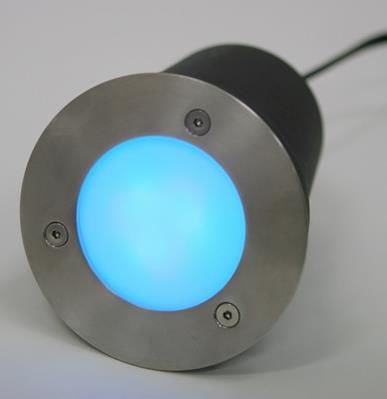

12V Single RGB Colour Changing Deck LightsGentle slow colour fading effect through Red, Green, Blue
Pre-programmed cycle.
Single 12V of 6 LED's per fitting
316 Marine Grade Stainless Steel trim
Die-cast Aluminium body
3m bi-pin cable included per fitting
Not remote compatible. On/Off switch only
Round: 60mm. Depth: 71mm. Cut-out: 50mm.
Square: 55mm. Depth: 71mm. Cut-out: 50mm
Must use 3-4 Way Connectors & LED 12V 36w drivers
Deck Light must have good drainage and not sit in water
IP67
12V LED Round White 6 x LED's
Warm White only
316 Marine Grade Stainless Steel trim
Die-Cast Aluminium body
Diam: 60mm Depth: 71mm
Cut-out: 50mm
SMD LED max 6 x 0.07 watt
Includes 3 metre cable. Bi-pin screw cap design
Must be used with Matrix LED Drivers - 12V/12w or 12V/36w
This LED deck light must be wired in parallel when adding extra deck lights
Deck light must have good drainage and not sit in water
IP68
Set of 3
12V LED 3 x Round White 6 x LED's per fitting
Warm White only
316 Marine Grade Stainless Steel trim
Die-cast Aluminium body
Suitable for walk over applications
Extra lights may be added
Must be wired in parallel
Diam: 60mm round Depth: 71mm
Cut-out: 50mm
SMD LED Max: 6 x 0.12W per fitting
Kit includes 3m cable per deck light
1 x 12V Driver with lead & plug
1 x 3 Way Connector
1 x Junction Box
Deck lights must have good drainage and not sit in water
IP68
12V LED Single Round 115mm of 10 Blue LED's Deck Light
316 Marine Grade Stainless Steel trim
6mm thick walk-over glass
Die-cast Aluminium sleeve for fitting in concrete
3 spring clips included
Diam: 115mm Top flange 2mm
Depth: 100mm
Body diam: 75mm Cut-out: 100mm
Must use with Matrix LED Drivers - 12V/12w or 12V/36w
Must be wired in parallel
Deck Light must have good drainage and not sit in water
IP67
Blue and Green
12V LED Single 108mm Square 10 LED's Deck Light
316 Marine Grade Stainless Steel trim
6mm thick walk-over glass
Die-cast Aluminium sleeve for fitting in concrete
3 x Spring Clips include per fitting
Diam: 108mm x 108mm Top flange: 2mm
Depth: 100mm
Body diam: 75mm Cut-out: 100mm
Must use Matrix LED Driver - 12V/12w or 12V/36w
Must be wired in parallel
Deck Light must have good drainage and not sit in water
IP67
*Available in blue and in green square kit form*
*Available in round blue only*
Set of 3
12V LED 115mm Round Blue Kit of 3 x 10 LED's
316 Marine Grade Stainless Steel trim
6mm thick walk-over glass
Die-cast Aluminium body sleeve for fitting in concrete
Diam: 115mm. Top flange: 2mm. Depth: 100mm
Body diam: 75mm. Cut-out:100mm
3 spring clips per fitting
Kit included 3 fittings. 3m Cable per fitting. 1 x 12VA (SELV) driver w/lead & plug.
3 way Connector. 1 x Junction box
Extra lights may be added using Matrix 4 way connectors & cable extensions
Must be wired in parallel
Deck Light must have good drainage and not sit in water
IP67
Blue and Green
Set of 3
12V LED 3 x Square Blue or Green 10 LED's Kit
316 Marine Grade Stainless Steel trim
Die-cast Aluminium body sleeve for fitting in concrete
Diam: 108 x 108mm. Top flange: 2mm. Depth: 100mm
Body diam: 75mm. Cut-out: 100mm
3 spring clips included per fitting
Kit includes 3 x deck lights. 3m cables per fitting.
1 x 12VA (SELV) driver with lead & plug
1 x 3 Way Connector
1 x Junction Box
Extra light may be added using Matrix 4 way connectors & cable extensions
Must be wired in parallel
Deck Light must have good drainage and not sit in water
IP67
*Available in single blue and green*
*Available in kit form of 3 in round blue only*
Suit 3-4 way connectors &
LED lights
Male/Female connections
Easy screw-cap connections
12V 12 watt Driver/Transformer suitable for Matrix LED Deck Lights
Input: 240VAC. 50Hz. 18VA
Output: 12VAC. 1.0A 12VA
Plug and Lead: 1.95 metres
Measures: H 50mm x W 80mm x D 50mm
IP44
*Available in 10w(IP65), 30w(IP65) and 36w(IP65)*
Dimmable Electronic Transformer
Length: 140mm x Depth: 36mm
IP65 protection (Not able to be buried)
Dimmable with most standard dimmers
Soft start protects filaments & prolongs lamp life
Input voltage surge protection
Radio interference suppression
Thermal protection
Ideal for bathroom, laundry or damp area
Dimmable Electronic Transformer
Length: 140mm x Depth: 36mm
IP65 protection (Not able to be buried)
Dimmable with most standard dimmers
Soft start protects filaments & prolongs lamp life
Input voltage surge protection
Radio interference suppression
Thermal protection
Ideal for bathroom, laundry or damp area
Single 1 x 3 Watt Nichia Japan High Power Cool White LED's
3m Cable with Male plug included to connect to suitable Matrix 12V AC Drivers (not included)
Power consumption: 4.5 watts.
Connects extra lights using Matrix cables
Durable Aluminium Body with Adjustable Spike
Poly Carb lens cover.
Head diam: 58mm
Colour Lens Inserts included.
IP65

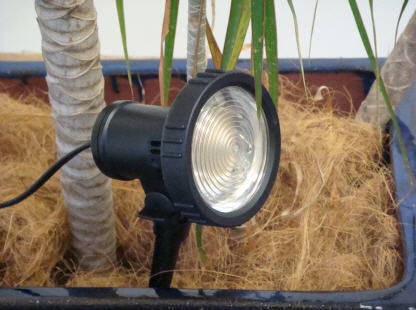

4 x 1 Watt Nichia Japan High Power LED Cool White LED's
Power consumption: 6.05 watts
Diam: 155mm x 49mm head
Durable Aluminium Body with Adjustable Spike
Unique reflector design for max light output & spread
Energy Saving - Very low Heat Long Life
Fast connect 3m Cable with Male plug to suitable Matrix 12V AC Driver (not included)
Connect extra lights using Matrix cables & connectors (check load of driver)
Colour Lens Inserts included
IP65
Durable Non-Rust Black Plastic
10 x Super Bright LED’s with reflectors in White or Blue LED's
12V .05 watt low voltage.
Adjustable & Removable Garden Spike
IP64 with Inbuilt Weight
3 metre Cable with fast screw-cap connection to Matrix LED system
Use with Matrix 12V LED Transformers (not included)
Mix with LED Deck Lights or on their own
Stainless Steel Trim
Sleeve included for recess mounting
Retention Springs for wall installation
Power consumption: approx 2 watts
230/240V. 50Hz
Indoor/Outdoor Use. IP65
Front Trim: H 83mm x W 83mm x D 2mm
Body: H 60mm x W 60mm x D 40mm
Sleeve: 77mm x 77mm x 42mm
*Available in Blue LED and White LED*
*Available in Crossed Front and Plain Front*
Stainless Steel Trim
Sleeve included for recess mounting
Retention Springs for wall installation
Power consumption: approx 2 watts
230/240V. 50Hz
Indoor/Outdoor Use. IP65
Front Trim: H 83mm x W 83mm x D 2mm
Body: H 60mm x W 60mm x D 40mm
Sleeve: 77mm x 77mm x 42mm
*Available in Blue LED and White LED*
*Available in Crossed front*
Round 60mm 6 x LED's 240Volt AC input Deck/Ceiling/Wall Light
6 x 0.12W Super bright LED's.
Power consumption: 1.5W
Stainless Steel Trim: Top flange: 60mm. 2mm thickness
Body diam: 45mm. Depth: 75mm. Cut-out: 50mm
3m Cable included. Flush mounted
Suitable for walk-over applications
IP65
*Available in white and in blue LED's*
LED5MWPCW LED5MWPBLU
WEATHERPROOF IP67
4.8W p/mtr. 300 LED's @ 5m.
Silicone tube
Easy plug-in connectors
Can be cut as marked
MUST re-seal for IP67
12V 24W @ 5m.
Available in cool white and blue silicone tube
Input: 100/240V. Output: 12V DC
Flexible Strip Light
NON-WEATHERPROOF
4.8W p/mtr. 300 LED's @ 5m.
Double sided 3M adhesive tape
Can be cut as marked
Easy plug-in connection
12V 24W @ 5m.
Available in cool white and blue
Input: 100/240v. Output: 12V DC
Indoor Use Only
